H-Type Chicken Cage Systems: A Practical Guide for Poultry Farmers
Poultry farming demands efficiency, space optimization, and bird welfare. The H-Type Chicken Cage system has gained popularity among commercial farmers for its ability to house large flocks while maintaining high productivity. Unlike traditional battery cages or floor-rearing systems, the H-Type design maximizes vertical space, improves ventilation, and simplifies feeding and egg collection.
How H-Type Cages Work
The H-Type cage gets its name from its stacked, tiered structure resembling the letter "H" when viewed from the front. Each tier operates as an independent level, allowing farmers to manage multiple layers of birds in the same footprint as a single-level system.
For example, a four-tier H-Type cage in a 500-square-foot shed can hold the same number of birds as a 2,000-square-foot floor system. This vertical arrangement reduces land costs while maintaining bird density. Each tier includes:
- Feed troughs running along the front, allowing birds to access feed without competition.
- Nipple drinkers positioned at beak level, ensuring clean water with minimal spillage.
- Sloped wire floors that let eggs roll gently to the collection tray, reducing breakage.
- Manure belts beneath each tier to keep waste separate from birds, improving hygiene.
Benefits for Poultry Farmers
1. Higher Stocking Capacity Without Crowding
Farmers using H-Type cages can triple or quadruple their flock size without expanding their building. Each bird has its own designated space, preventing the aggression and stress seen in overcrowded floor systems.
2. Improved Egg Production and Quality
The controlled environment reduces egg losses from trampling or contamination. Eggs roll away immediately after laying, keeping them cleaner and reducing bacterial load. Farmers report a 5–10% increase in saleable eggs compared to deep-litter systems.
3. Easier Manure Management
Manure belts or scrapers remove waste daily, preventing ammonia buildup. This is critical in humid climates where wet litter can lead to respiratory diseases. Some systems integrate manure drying tunnels, converting waste into fertilizer with minimal odor.
4. Reduced Labor Costs
Automated features like central feeding systems, egg collection belts, and water lines cut labor time by up to 50%. One worker can manage 10,000 birds efficiently—impossible with manual floor systems.
5. Better Disease Control
Isolating birds in cages limits direct contact, reducing the spread of infections like avian influenza or coccidiosis. Farmers can also monitor individual birds more easily, culling sick ones before an outbreak escalates.
Installation and Maintenance Considerations
Space and Ventilation Requirements
H-Type cages require at least 3 feet of vertical clearance between tiers for proper airflow. Poor ventilation leads to heat stress, especially in summer. Farmers in hot regions often install exhaust fans or evaporative cooling pads to maintain temperatures below 75°F (24°C).
Choosing the Right Cage Density
Overstocking defeats the purpose of the system. Recommended densities:
- Layers: 4–5 birds per square foot (432–540 sq. in. per bird)
- Broilers: 3–4 birds per square foot (648–864 sq. in. per bird)
Exceeding these numbers increases aggression, feather pecking, and mortality rates.
Feeding and Watering Systems
- Pan feeders are common but require frequent adjustment to prevent feed wastage.
- Chain feeders distribute feed evenly but need daily inspection for jams.
- Nipple drinkers should be checked for leaks or blockages weekly.
Manure Handling Options
- Manual scraping: Cheaper but labor-intensive.
- Automatic belts: Higher upfront cost but reduce daily labor.
- Deep-pit systems: Manure drops into a pit below the house, removed monthly.
Cost Analysis: Is It Worth the Investment?
A 10,000-bird H-Type system costs between $25,000–$40,000, depending on automation levels. Compared to floor systems, the payback period is 2–3 years due to:
- Higher egg production
- Lower mortality rates
- Reduced feed waste
- Labor savings
Smaller farms can start with semi-automated systems and upgrade later.
Common Mistakes to Avoid
1. Ignoring Ventilation – Stagnant air increases humidity and disease risk.
2. Overloading Cages – Even in automated systems, overcrowding lowers productivity.
3. Skipping Routine Maintenance – Worn-out nipple drinkers or clogged feed lines disrupt operations.
4. Poor Lighting Setup – Birds need 14–16 hours of light daily for peak laying. LED bulbs with timers are ideal.
Final Thoughts
The H-Type cage system is a game-changer for poultry farmers aiming to scale production without compromising bird health. By optimizing space, automating key tasks, and improving hygiene, it delivers a faster return on investment than traditional methods. Farmers transitioning to this system should prioritize proper installation, ventilation, and routine checks to maximize its benefits.
For those ready to upgrade, consulting an experienced supplier ensures the right setup for their specific flock size and climate conditions. The initial investment pays off in higher yields, lower costs, and a more manageable operation.

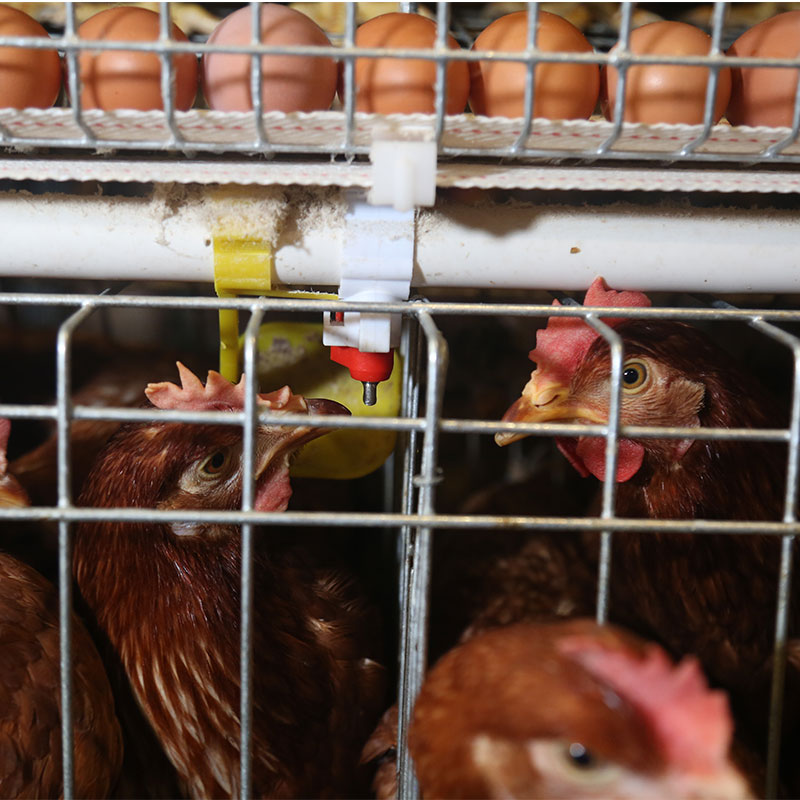

1. Drinking system include the water pipes, water pressure adjuster, drinking nipples, Waterline front-end device, dosing system etc, choose them according to customer's needs.
2. High-quality water drinking pipes, pressure regulating valves and water drinking nipples can effectively prevent the water leakage. Drinking system adopt the closed piping system, which can minimize the water pollution.
3. 360-degree drinking nipples provide adequate drinking water for poultry at all stages.
4. The automatic drinking water system mainly adopts the steel ball drinking nipple. lt uses imported high-grad stainless steel, POM resin, and APS engineering material, which is wearing resistant, and the durability can be used for long time.
1. Automatic feeding machine can be chosen between gantry and ladder feeding machine. Gantry type feeding machine is a relatively economical and practical machine with simple operation, remote control walking character, easy to manage.
2. Mechanical transmission device running smoothly, low noise, long service life.
3. With the use of automatic control, the feeding system can adjust the amount of material.
4. Feeding with arched structure, high carrying capacity, not easily deformed.
5. Saving man power, saving feed, greatly improving the efficiency of Large-scale farming.
6. The walking speed of gantry feeding machine is 9--12 m/min.
1. Manure removing system included scraper type and conveyor belt type, Which can reduce the labor intensity and labor cost, keep the chicken shed dry and clean.
2. A type chicken cage can use scraper type or conveyor belt type.
3. The scraper type is suitable for A type cages, which can clean two or three rows. For the starters, this type is a good choice. lt can not only save some labor cost, but also save some investment in the whole project. The cleaning speed is 6-10 meters per minute.
4. Conveyor belt type is more suitable for large scale farming. The manure removing belt we use is high quality PP material (polypropylene). The walking speed is 2-4 meters per minute.
High Quality Pellets Made by Mobile Pellet Machine
1. It has professional designed angle of the blade. After the dynamic balance test one by one, the blade can operate smoothly.
2. The air volume is consistent in the whole life of the fan. Bearings has advantage of high strength, low noise, durable and so on.
1. The cooling pads uses high-quality wet curtain paper and adopts space cross-linking technology, which has the advantages of high water absorption, high water resistance, anti-toxicity and long service life.
2. The cooling efficiency is over 80%, without surfactant, natural water absorption, fast diffusion speed and long-lasting effect.
3. The product does not contain phenol and other chemical substances that are easy to cause skin allergies. It is non-toxic and harmless to the human body and chicken when installed and used. It is green, safe, energy-saving, environmentally friendly, economical, and easy to install.
4. The frame aluminum alloy has high strength, good corrosion resistance, durability and beautiful appearance.
5. Use a special filter for the cooling pad at the upper water to ensure clean water quality and support efficient water circulation components.
6. Combined with a negative pressure fan, it can effectively lower the indoor temperature.
The window is made of special selected high-quality engineering plastic, with high strength and long service life, together with superior anti-aging and anti-UV performance.
Function: Ventilation of the chicken house, usually used in the winter.
This system can adjust the wind speed and direction, thus the cold air will not reach chicken directly , which can effectively prevent the phenomenon of cold stress in chicken.
Environmental control system equipment is suitable for large-scale and intensive farming. According to customer requirements, we can provide various types of smart poultry equipment.
1. Our poultry management system is a modular system that manages all aspects of the chicken house, such as climate, temperature, humidity, ammonia, feeding, feed weighing, lighting and ventilation systems, and can monitor the situation of the chicken house in real time through a computer and mobile phone.
2. The management computer is the heart of the poultry farm, allowing you to easily monitor the entire poultry farm.
